Powerturn * Electromechanical swing door drive for single leaf doors weighing up to 600 kg
- Smart swing function for easy manual door opening
- Closing force of EN4-7 with variable adjustment
- Opening and closing speed can be individually adjusted
- Mechanical latching action when operated without current, and electrical automatic unit latching action in regular operation, which accelerates the door shortly before it is closed
- Low-energy function opens and closes the door with reduced speed, fulfilling the highest safety demands
- Servo function for motorized support when manually opening the door
- Obstacle detection detects an object through contact and stops the opening or closing process
- Automatic reversing detects an obstacle and returns to the opening position
- Push & Go function triggers the automatic drive following light manual pressure on the door leaf
- Drive can be used with roller guide rail or link arm
- Optional radio reception board for wireless activation by radio transmitter
- Freely configurable inputs and outputs for different functions
- Can be networked, and integrated into the building automation via open standard (BACnet)
Application Areas
- Single-action, single leaf, right and left closing doors
- Single-action doors up to 1600 mm leaf width or 600 kg weight
- Minimum door leaf width is 800 mm
- Interior and exterior doors with high access frequency
- Door leaf installation and transom installation
Installation situations in reference objects and videos
Technical data
Powerturn | |
Leaf weight (max.) 1-leaf | 600 kg |
Leaf width (min.-max.) | 800 mm - 1600 mm |
Reveal depth (max.) | 560 mm |
Opening angle (max.) | 136 ° |
DIN left | Yes |
DIN right | Yes |
Transom installation opposite hinge side with link arm | Yes |
Transom installation opposite hinge side with roller guide rail | Yes |
Transom installation hinge side with roller guide rail | Yes |
Door leaf installation opposite hinge side with roller guide rail | Yes |
Door leaf installation hinge side with roller guide rail | Yes |
Door leaf installation hinge side with link arm | Yes |
Mechanical latching action | Yes |
Electrical latching action | Yes |
Disconnection from mains | Main switch in the drive |
Power supply for external consumers (24 V DC) | 1.2 A |
Service temperature | -15 - 50 °C |
Air humidity non-condensing (max.) | 95 % |
Mode of operation | Automatic, Off, Permanently open, Shop closing, Night |
Automatic function | Yes |
Low-energy function | Yes |
function smart swing | Yes |
Servo function | Yes |
Obstacle detection | Yes |
Automatic reversing | Yes |
Push & Go | adjustable |
Operation | Programme switch DPS, Programme switch integrated in the drive, MPS programme switch |
Parameter setting | Service terminal ST 220, Programme switch DPS, GEZEconnects (PC + Bluetooth) |
Standard conformity | EN 16005, DIN 18650 |

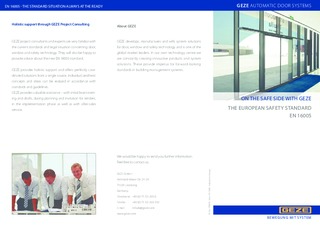

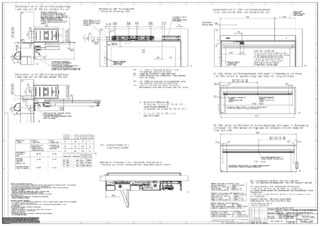

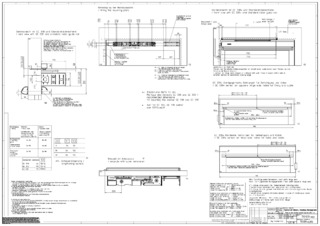

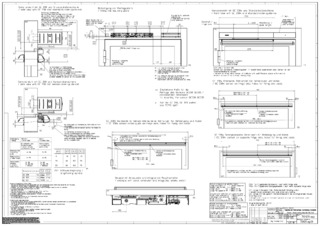

Downloads
