Laser scanner

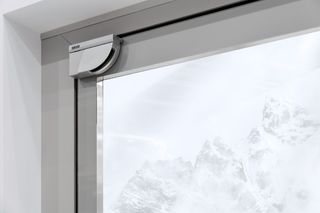

GC 342 * Laser scanner for the protection of automatic doors and windows with integrated object and wall blanking

GC 342 Laser scanner, Single sensor left compact safety sensor, safeguarding
  • Compact and space-saving safety sensor
  • Narrow detection area secures door leaf widths up to max. 1600 mm
  • Integrated object and wall blanking near maximum door opening
  • Protection area on the main closing edge is automatically expanded depending on the door angle
  • Automatized teaching of the system with the push of a button
  • Avoidance of hazards at pinching and shearing edges on automated windows
Contact us

Application Areas

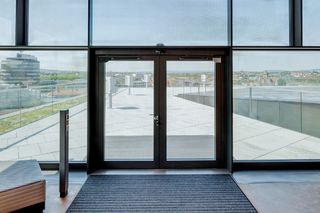

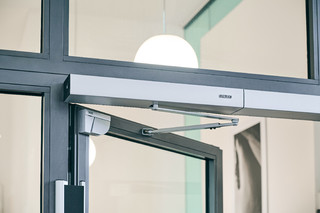

  • Protection of automatic swing and revolving doors
  • Interior and exterior doors
  • Use on doors up to 1600 mm leaf width
  • Complicated flooring, such as reflective floors, entrance mats, metal rails
  • Use on doors with continuous vertical pull handle
  • Protection of the main and secondary closing edges on automated windows

Technical data

GC 342

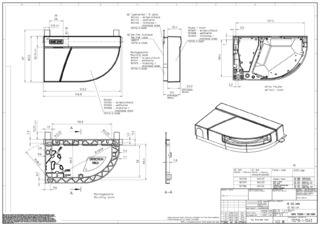

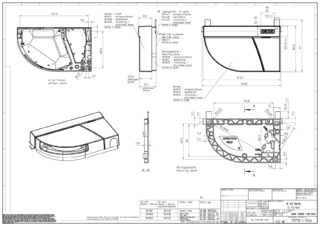

Dimensions 143 x 86 x 40 mm
Technology Laser scanner, time-of-flight measurement
Number of active infrared detectors 1
Operating voltage 12-24 V DC ± 15%
Output 2 potential-free relay contacts
IP rating IP54
Connector cable length 2500 mm
Installation height (min.) 1500 mm
Installation height (max.) 3870 mm
Reaction time Door leaf safety: < 50 ms / pinch zone safety: < 90 ms
Service temperature -30 - 60 °C
Humidity 0-95 % relative, non-condensing
Standard conformity DIN 18650, EN 16005

Variants & Accessories
