Wireless programme

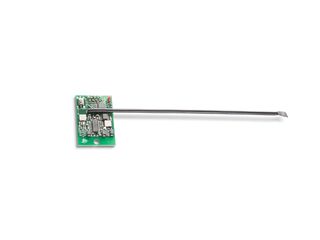

WRB-5 * Radio reception board for ECturn, ECturn Inside and Powerturn swing door drives

WRB-5
  • Encrypted communication via rolling code with up to 74 trillion code combinations
  • Custom and reliable teach-in to exclude unauthorised activation
  • Channel 1 for standard activation, press and hold to switch from the current mode of operation to hold open and back
  • Channel 2 for push button/hand held transmitter with the function “authorised activation”
Contact us

WRB-5

Application Areas

  • For insertion on the GEZE Powerturn, GEZE ECturn and GEZE ECturn Inside control unit
  • Compatible with WTH remote control and WTM transmitting module
  • Can be coupled with up to 12 WTH and/or WTM radio transmitters

Technical data

WRB-5
Dimensions 44 x 27 x 10 mm
Operating current 7 mA
Type of installation can be plugged in to DCU control units
Adjustability with push of button
Transmission frequency 433.93 Mhz
Service temperature -15 - 50 °C
Humidity 0-95 % relative, non-condensing

Downloads

Variants & Accessories

* Notice about the products displayed

The products mentioned above may vary in form, type, characteristics and function (design, dimensions, availability, approvals, standards etc.) depending on the country. For questions please contact your GEZE contact person or send us an E-Mail .
