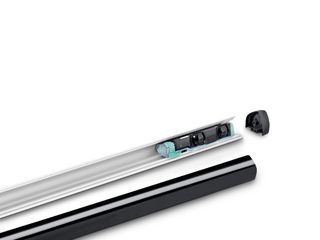

GC 338 * Sensor strip with standby mode for the protection of automatic swing and revolving doors

GC 338 Sensor strip Sensor strip for the protection of automatic swing doors according to DIN 18650
  • Energy and space-saving sensor strip
  • Standby mode provides up to 50 % energy savings and increases the life span of the LED diodes
  • Close-knit detection area secures leaf widths of up to max. 1500 mm
  • Integrated object and wall blanking near maximum door opening
  • Automatized teaching of the system with the push of a button
  • All settings can be conveniently made by DIP switch
Show more
  • Click installation in the sensor cut-out profile reduces installation work
Contact us

Application Areas

  • Protection of automatic swing and revolving doors
  • Interior and exterior doors
  • Complicated flooring, such as reflective floors, entrance mats, metal rails
  • Narrow door profiles
  • Door widths 600 to 1500 mm
  • Minimum possible length of the sensor strip with 1 transmitter/receiver module each: 51 cm
  • Minimum possible length of the sensor strip with 2 transmitter/receiver modules each: 83 cm

Technical data

GC 338
Technology Active infrared beams
Switching voltage 30 V
Switching capacity max. 100 mA
Operating current 30 mA
IP rating IP54
Connector cable length 5000 mm
Installation height (min.) 1500 mm
Installation height (max.) 3500 mm
Reaction time < 52 ms and < 200 ms in boost mode
Service temperature -30 - 60 °C
Humidity < 90% relative, non-condensing
Standard conformity EN 16005, DIN 18650
