MBZ 300 N10 Smoke and heat extraction control panel for smoke and heat extraction system drives with a total current consumption of 10 A
- Modular design to allow flexible adaptation to project-specific requirements
- Convenient extension by clicking on other modules in a control unit
- Can be extended by alarm groups, ventilation groups and alarm lines as required
- Depiction of complex smoke and heat extraction scenarios
- Simple service and installation thanks to status display directly on the module
- Configuration software simplifies commissioning and configuration
- Wind direction dependent activation possible (SHEV according to EN 12101-2)
- Safety and reliability confirmed by VdS certification
Smoke and heat extraction control panel for smoke and heat extraction system drives with a total current consumption of 10 A
Application Areas
- Connecting possibilities for small smoke and heat extraction solutions, including with complex demands
- For smoke and heat extraction system drives with a total power consumption of 10 A
- Control of electromotive 24 V drives for smoke and heat extraction in the event of a fire
- Control of a controlled natural ventilation

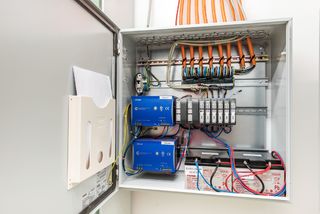

Installation situations in reference objects and videos
MBZ 300
The MBZ 300 ensures the activation of the windows in the event of fire, as well as the daily ventilation mode of the company Vector Systems. © Jürgen Pollak / GEZE GmbH
MBZ 300 N72, Olgahospital
Even the most complex smoke and heat extraction scenarios, such as in the Olgahospital, control the modular emergency power supply unit MBZ 300. Safety and reliability - both in case of fire and in day-to-day ventilation mode. © Jürgen Pollak / GEZE GmbH
MBZ 300 N48G
Emergency power control unit for smoke and heat extraction system drives installed at the Olgahospital. © Jürgen Pollak / GEZE GmbH
MBZ 300 N72, Olgahospital
Even the most complex smoke and heat extraction scenarios, such as in the Olgahospital, control the modular emergency power supply unit MBZ 300. Safety and reliability - both in case of fire and in day-to-day ventilation mode. © Jürgen Pollak / GEZE GmbH
Technical data
| MBZ 300 N10 | |
| Dimensions | 400 x 500 x 200 mm |
| Width | 400 mm |
| Height | 500 mm |
| Depth | 200 mm |
| Material | Sheeting |
| Colour | grey RAL 7035 |
| IP rating | IP30 |
| Service temperature | -5 - 40 °C |
| operating voltage | 230 V AC |
| Power consumption (max.) | 240 W |
| Connection cross-section / mains | 2.5 mm² |
| Output voltage | 24 V DC +/-15% |
| Residual ripple | 2 % |
| Output current (max.) | 10 A |
| Duty rating with maximum output current | 30 % |
| Battery capacity | 12 Ah |
| Alarm groups | 1 |
| Vent groups | 1 Stk. |
| Networking of several control units | connection with optional CAN Bus modules |
| Signal outputs available | 1 status contact per CM/SM, 6 signal contacts per ERM for which parameters can be set |
| Parameter setting of control units | via USB interface an PC software |
| Standard conformity | EN 12101-10 |
| Approvals | VdS |
