TS 500 NV with hold-open unit

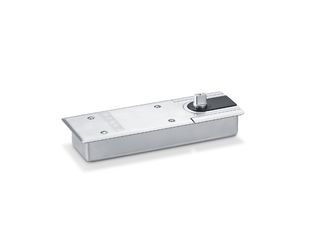

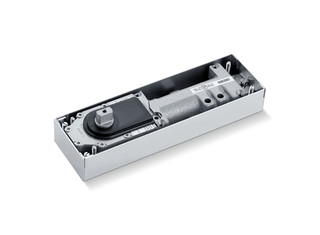

Closer body TS 500 NV * Basic body for floor-mounted door closer EN 1-4

TS 550 NV Floor springs for 1-leaf single/double-action doors
  • Closing force EN1-4 with variable adjustment
  • Can be used for right and left hand doors without conversion
  • Closing speed can be individually adjusted
  • Hydraulic latching action which accelerates the door shortly before it is closed
  • Integrated back check, slows down doors that are thrown open forcefully
  • All functions can be adjusted from above and in the installed state
Contact us

Application Areas

  • Right and left single- and double-action doors
  • Single- and double-action doors up to 1100 mm leaf width and 150 kg weight
  • Floor mounting, concealed
  • Not permitted for use on fire and smoke protection doors.

Technical data

Closer body TS 500 NV
Use on single-/double-action door Single-action door, Double-action door
Opening angle (max.) 170 °
Closing force in accordance with EN 1154 EN 1 - 4
Leaf width (max.) 1100 mm
Leaf weight (max.) 150 kg
DIN direction left / right
Standard conformity EN 1154:1996/A1:2002/AC:2006

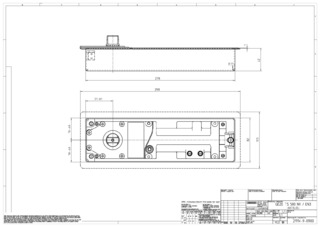

Length 278 mm
Width 82 mm
Height 42 mm
Length adjustment range for cement box 10 mm
Width adjustment range for cement box 10 mm
Height adjustment range for cement box 6 mm
Closing force adjustable Yes, stepless
Adjustable closing speed Yes
Latching action adjustable Yes, via valve
Back check integrated Mechanically fixed
Position of closing force adjustment Top
Safety valve againts overload Yes
Thermo-control valves Yes
Closing effect from 170 °
