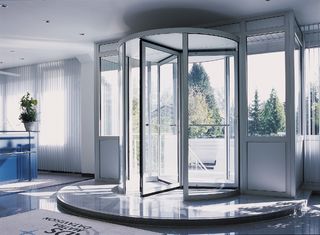

TSA 325 NT Manual * Manual revolving door system for three- or four-leaf doors
- The door leaves can be activated by gently pushing them
- More cost-effective than automatic drives, since safety devices according to EN 16005 are no longer needed
- Precise closing of the door leaves with the side walls
- Effective insulation effect against draughts, weather and noise
- Optional speed limiter regulates the peripheral speed when reaching the max. limiting speed
- Optional automatic positioning device returns the door to its original position after a person has passed through it
Application Areas
- Three- and four-leaf door systems
- Interior and exterior doors with low access frequency
- Representative building entrances with large incidence of light
- Façades with slim mullion-transom constructions
- Glass façades with the highest design standards
- Inner diameter ranging from 1800 to 3600 mm possible
- Suitable profile systems are fine-framed profile systems with ISO and mono glass, all-glass systems (GGS) and integrated all-glass systems (IGG)
Installation situations in reference objects and videos
Revolving door with semi-automatic GEZE TSA 325 in the ÖAMTC control panel Vienna
The main and side entrance is a revolving door with semi-automatic GEZE TSA 325. Escape and fire protection door various door closer GEZE TS 5000 ISM (E-ISM, EFS). Smoke and heat extraction system in workshops RWA 110 Tandem. © Sigrid Rauchdobler / GEZE GmbH
TSA 325 NT with Slimdrive EMD-F
Manual revolving door and automatic swing door drive Slimdrive EMD-F installed at The Nadler Hotel in Soho, London © Michael Molloy / GEZE GmbH
Technical data
| TSA 325 NT Manual | |
| Manual operation | Yes |
| With speed limiter (optional) | Yes |
| With positioning device (optional) | Yes |
| Servo function | Yes |
| Inner diameter (min.) | 1800 mm |
| Inner diameter (max.) | 3600 mm |
| For 3-leaf door systems | Yes |
| For 4-leaf door systems | Yes |
| Clear passage height | 3000 mm |
| Canopy height (min.) | 75 mm |
| Side elements version | 10 mm LSG, 22 mm panel lining, 34 mm smooth-surface panel, Special glass on request |
| Version of roof structure | As dust protection roof with wood covering, optical sheet metal covering, waterproof roof with waterspout |
| Illumination | with roof variant |
| Floor covering | Entrance mat, Entrance mat according to customer wishes |
| Hot-air curtain system | Electric air curtain, hot water air curtain, possible, depends on the ceiling construction |
| Night-time closer layout | Inside, Outside |
| Night-time closer type | Manual, Automatic |
| Night-time closer design | 10 mm LSG, 22 mm ISO glass, 22 mm panel lining, Special glass on request |
| Lock | Manual, Rod, electromechanical |
| Door handles horizontal or vertical | Yes |
| Floor ring | Yes |
| Underfloor operator | Yes |
| Push pad | Yes |
| Standard conformity | DIN 18650, EN 16005 |
