ECturn Inside

ECturn Inside * Integrable electromechanical swing door drive for accessible single leaf doors weighing up to 125 kg

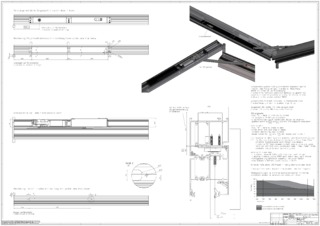

Guide rail ECturn Inside
  • Drive is embedded in door leaf or frame and fulfils maximum design requirements
  • Opening and closing speed can be individually adjusted
  • Electrical latching action which accelerates the door shortly before the closed position
  • Low-energy function opens the door with reduced speed, fulfilling the highest safety requirements
  • Obstacle detection detects an object through contact and stops the opening or closing process
  • Automatic reversing detects an obstacle and returns to the opening position
Show more
  • Push & Go function triggers the automatic drive following light manual pressure on the door leaf
  • Drive is used with guide rail
  • Optional rechargeable battery provides maximum safety during a power failure
  • Optional radio reception board for wireless activation by radio transmitter
Contact us

Application Areas

  • Single-action, single leaf, right and left closing doors
  • Single-action doors up to 1100 mm leaf width or 125 kg weight
  • Entrance and interior doors with moderate access frequency
  • For door leaf thicknesses from 55 mm

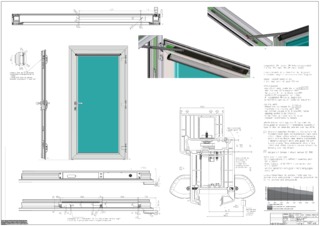

  • Integrated installation in door or frame
  • Barrier-free access

Technical data

ECturn Inside
Height 61 mm
Depth 45 mm
Leaf weight (max.) 1-leaf 125 kg
Leaf width (min.-max.) 700 mm - 1100 mm
Drive type Electromechanical
Opening angle (max.) 110 °
DIN left Yes
DIN right Yes
Installation in the door leaf Yes
Installation in the door frame Yes
Electrical latching action Yes
Activation delay (max.) 10 s
Operating voltage 110 – 230 V
Operating voltage 26.8 V
Power rating 92 W
Power supply for external consumers (24 V DC) 600 mA
Service temperature -15 - 50 °C
IP rating IP20
Mode of operation Off, Automatic, Permanently open, Night
Type of function Fully automatic
Automatic function Yes
Low-energy function Yes
Key function Yes
Obstacle detection Yes
Automatic reversing Yes
Push & Go adjustable
Operation Programme switch integrated in the drive, Programme switch TPS, MPS programme switch
Parameter setting Control unit, Programme switch DPS
Standard conformity EN 16005
