Door draw-in damper

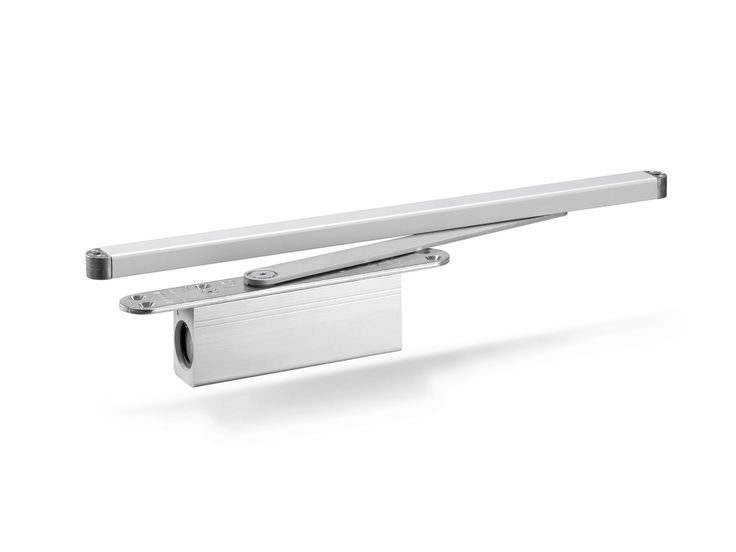

GEZE ActiveStop integrated Door damper on both sides for interior wooden swing doors

GEZE ActiveStop, integriert Beidseitige Einzugsdämpfung für Anschlagtüren ohne Brandschutzanforderungen
  • Door opening angle with variable adjustment from 80°-140°
  • Can be used for right and left hand doors without conversion
  • Soft opening and closing of doors up to max. 45 kg leaf weight
  • Gentle stopping, quiet closing and comfortable keeping open of doors
  • Practically eliminates slamming doors, trapped fingers, and damage to walls and furniture
  • Secure holding of the door when open, meaning no door is stopper necessary
Show more
  • Opening and closing damping when installed can be set via a valve
  • Integrated safety valve offers overload protection
Buy online

Application Areas

  • Right and left timber single-action doors indoors
  • Room doors with high access convenience
  • Single-action doors up to 1100 mm leaf width

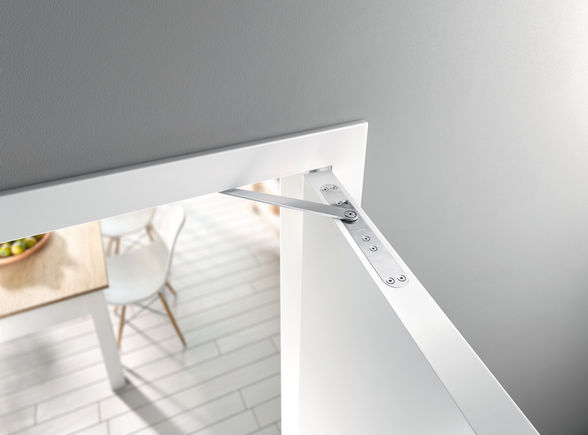

  • Integrated installation in the door leaf
  • Barrier-free access in accordance with DIN 18040-2
Go to campaign page

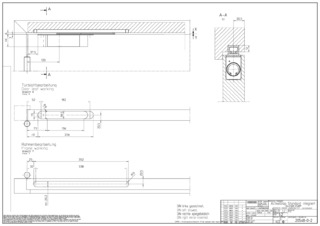

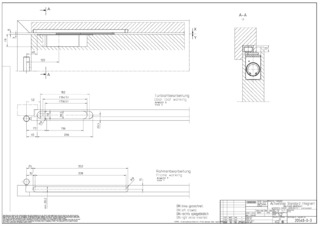

Technical data

GEZE ActiveStop integrated
Depth 28 mm
Height 64 mm
Leaf weight (max.) 45 kg
Leaf width (max.) 1100 mm
Category of door flush-mounted, rebated
Leaf thickness from 38 mm
Identical design for DIN left and DIN right Yes
Rebate space approx. 6 mm clearance in handle area
Installation type concealed
Adjustable draw-in damper Yes, via valve
Draw-in damper in direction of closing movement from 25 °
Free swing area 25 ° - 60 °
Draw-in damper in direction of opening movement from 60 °
Adjustable door opening angle Yes, stepless
Hold-open position adjustable 80 ° - 140 °
Safety valve againts overload Yes
