Link arm 1-leaf

TS 2000 NV * Overhead door closer with link arm for single leaf doors up to 1100 mm leaf width with closing force with variable adjustment

Door closer TS 2000 NV Overhead pinion door closer with link arm, Closing force size 1-4 after
  • Closing force of EN2-4 with variable adjustment
  • Can be used for right and left hand doors without conversion
  • Hydraulic latching action which accelerates the door shortly before it is closed
  • Closing speed can be individually adjusted
Contact us

Application Areas

  • Fire and smoke protection doors
  • Right and left single-action doors
  • Single-action doors up to 1100 mm leaf width
  • Door leaf installation hinge side and transom installation opposite hinge side
  • Door leaf installation opposite hinge side in parallel arm installation possible

Technical data

TS 2000 NV
Closing force in accordance with EN 1154 EN 2 - 4
Barrier-free in accordance with DIN 18040 up to leaf width (max.) in mm 1100 mm
Leaf width (max.) 1100 mm

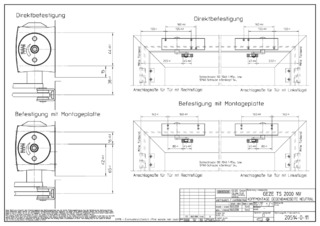

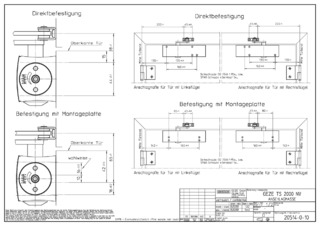

Type of installation Door leaf installation hinge side, Door leaf installation opposite hinge side, Transom installation opposite hinge side
Suitability for fire protection doors Yes
Closing force adjustable Yes, stepless
Latching action adjustable Yes, via valve
Position of closing force adjustment At the side
Hold-open function Optional
