TS 3000 EC

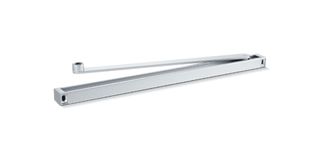

Guide rail BG TS 5000 / 3000 vertically adjustable * With height compensation +/- 2 mm, with lever, opposite hinge side

Guide rail TS 5000/TS 3000 vertically adjustable
  • Quick installation due to clip-on slide block
  • Horizontally adjustable in the installation position by 4 mm through elongated holes
Contact us

Application Areas

  • Single leaf doors
  • Installation on the opposite hinge side
  • Right and left single-action doors
  • For a height compensation of +/- 2 mm

Technical data

Guide rail BG TS 5000 / 3000 vertically adjustable
Length 448.5 mm
Width 30.5 mm
Height 20.5 mm
opening restrictor upgradable Yes
Hold-open function Optional
Hold-open device can be overridden Yes
Height correction possible Yes
