TSA 395
TSA 395 Automatic revolving door system for three- or four-leaf doors with large diameter
- Customised choice of diameter, passage height and surfaces
- Extensive equipment options
- Strong drive technology up to a diameter of 6000 mm
- Simple installation of the door system without lifting tools
- Fast commissioning thanks to pre-cabled and configured sensors
- Certification in accordance with EN 16005
Automatic revolving door system for three- or four-leaf doors with large diameter
Note: The product listed may not be available in your country. Please contact your GEZE contact person or send us an e-mail.
Application Areas
- Three- and four-leaf door systems
- Interior and exterior doors with high access frequency
- Representative building entrances with large incidence of light
- Façades with slim post-rail constructions
- Diameters from 4000 up to 6000 mm possible

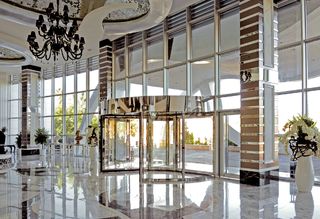

Installation situations in reference objects and videos
TSA 395
Automatic revolving doors offer a high degree of access convenience with high access frequency. Perfectly designed and elegant, they create the first impression in your building's foyer. With a variety of different modes of operation and settings, they can be used by everyone. © GEZE GmbH
Technical data
| TSA 395 | |
| Fully automatic operation | Yes |
| Suitability for escape and rescue routes | Yes |
| Break-out function (BO) | Yes |
| Inner diameter (min.) | 3900 mm |
| Inner diameter (max.) | 5900 mm |
| For 3-leaf door systems | Yes |
| For 4-leaf door systems | Yes |
| Clear passage height | 3000 mm |
| Canopy height (min.) | 400 mm |
| Side elements version | 8 mm LSG |
| Version of roof structure | optical sheet metal covering, waterproof roof with waterspout |
| Illumination | with roof variant, according to customer wishes |
| Floor covering | Entrance mat, Entrance mat according to customer wishes |
| Hot-air curtain system | hot water air curtain, Electric air curtain, possible, depends on the ceiling construction |
| Night-time closer layout | Outside |
| Night-time closer type | Manual |
| Night-time closer design | 8 mm LSG |
| Lock | Manual |
| Floor ring | Yes |
| Disabled person's button | Yes |
| Standard conformity | EN 16005 |
