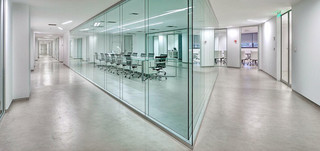

GD 105 W+ * Double glazed modular partition wall
- Double glazed modular partition wall
- Dimensions of the aluminium profiles width 45 mm, height 30 mm, and thickness 2 mm
- Aluminium glass retainer profile with just 25 mm visible width on floor, ceiling and wall
- Thermoplastic seal ensures noise reduction
- Glass wall sound insulation Rw = 42 to 45 dB (A)
Application Areas
- Static glass partition walls
- For internal application
- Can be used up to 3000 mm clear height
- Separation of rooms, such as offices
Technical data
GD 105 W+ | |
Frameless | No |
Indoor use | Yes |
Outdoor use | No |
Seal | Thermoplastic |
Sound insulation | 45 dB |
Partition wall height max. | 3000 mm |
Material thickness | 1.5 mm |
Height | 30 mm |
Width | 105 mm |
