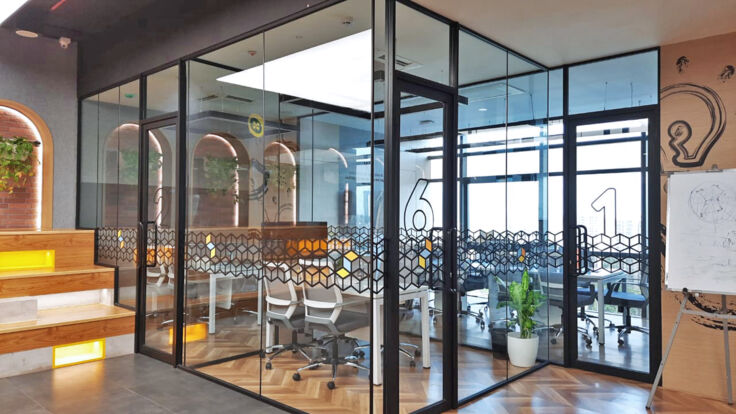

GD 45 S * Fixed all-glass partition wall system for transparent room design
- Single glazed modular partition wall with adjustable leaf profile and 6 mm screen
- Dimensions of the aluminium profiles width 45 mm, height 30 mm, and thickness 2 mm
- Aluminium glass retainer profile with just 30 mm visible width on floor, ceiling and wall
- Thermoplastic seal ensures noise reduction
- Glass wall sound insulation Rw = 32 to 35 dB (A)
Application Areas
- Static glass partition walls
- For internal application
- Can be used up to 3000 mm clear height
- Separation of rooms, such as offices
Technical data
| GD 45 S | |
| Frameless | No |
| Indoor use | Yes |
| Outdoor use | No |
| Seal | Thermoplastic |
| Sound insulation | 35 dB |
| Partition wall height max. | 3000 mm |
| Material thickness | 2 mm |
| Height | 30 mm |
| Width | 45 mm |
Downloads
LABELLING OBLIGATION: © GEZE GmbH
LABELLING OBLIGATION: © GEZE GmbH
* Notice about the products displayed
The products mentioned above may vary in form, type, characteristics and function (design, dimensions, availability, approvals, standards etc.) depending on the country. For questions please contact your GEZE contact person or send us an E-Mail .
