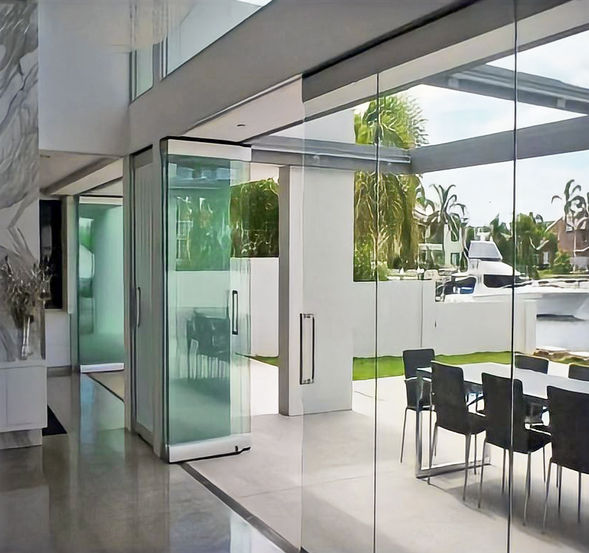

GEZE Slifold Transglass * Manual glass partition wall system with a panel height of up to 3.5 m
- Panels are moved manually in the track
- Panel design: single glazing up to max. 3.5 m panel height
- Panel thickness is 30 mm
- Track rollers move in a track integrated in the ceiling
- Panels are fastened across the entire panel width at the top and bottom with clamping profiles
- Vertical profiles of the panels are made of aluminium, anodised finish
Application Areas
- Individual space solutions
- Building-specific partition wall solutions
- Innovative space concepts
- Interior and exterior applications
Technical data
GEZE Slifold Transglass | |
Frameless | Yes |
Indoor use | Yes |
Outdoor use | Yes |
Leaf width (min.) | 600 mm |
Leaf width (max.) | 1120 mm |
Glass thickness | 10 - 12 mm |
Fully automatic operation | No |
Manual operation | Yes |
Semi-automated operation | No |
Optional floor guide | No |
Top and bottom sealing brushes | Yes |
Downloads
LABELLING OBLIGATION: © GEZE GmbH
* Notice about the products displayed
The products mentioned above may vary in form, type, characteristics and function (design, dimensions, availability, approvals, standards etc.) depending on the country. For questions please contact your GEZE contact person or send us an E-Mail .
