GEZE Slifold 100 * Manual partition wall system with a panel height of up to 12 m and a max. sound insulation of Rw=58 dB(A)
- The horizontal sealing profiles are operated manually and semi-automatically
- Panels are moved manually in the track
- Panel design: MDF board finish, max. 3.5 m panel height and max. Rw=44 dB(A)
- Panel thickness is 100 mm
- Anodised ceiling track with sealing-off corresponding to the sound insulation value
- Vertical profiles of the panels are made of aluminium, anodised finish
- No floor guides necessary
- Stacking area possible inside and outside the partition wall axis
- High-quality track system
- Optionally available with single and double leaf sliding swing doors
- Magnetic vertical seals are included
Application Areas
- Individual space solutions
- Building-specific partition wall solutions
- Innovative space concepts
- Moveable acoustic partition walls
- Inside

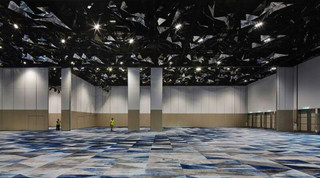

Installation situations in reference objects and videos
Technical data
GEZE Slifold 100 | |
Frameless | No |
Indoor use | Yes |
Outdoor use | No |
Leaf width (min.) | 600 mm |
Leaf width (max.) | 1220 mm |
MDF board thickness | 16 - 18 mm |
Stacking area layout | Automatic, Linear, Manual |
Fully automatic operation | No |
Manual operation | Yes |
Semi-automated operation | Yes |
Optional floor guide | No |
Top and bottom sealing brushes | Yes |
Retractable seal | Yes |
