Acoustic partition walls

GEZE Slifold 80 * Manual partition wall system with a panel height of up to 3.5 m and a max. sound insulation of Rw=44 dB(A)

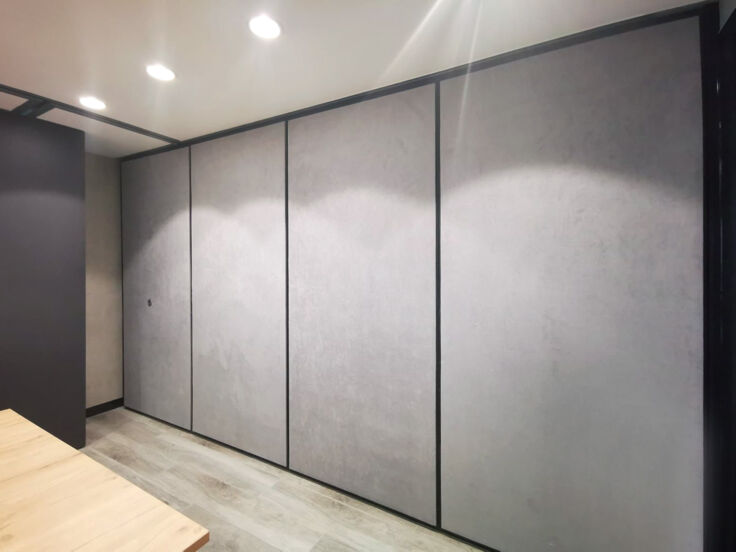

GEZE Slifold 80 Manuelle Schiebetrennwand aus MDF-Stoffausführung
  • The horizontal sealing profiles are operated manually and semi-automatically
  • Panels are moved manually in the track
  • System components comprise the base panel, telescopic panel, sliding panel and sliding panel with integrated door leaf
  • Panel design: MDF board finish, max. 3.5 m panel height and max. Rw=44 dB(A)
  • Panel thickness is 80 mm
  • Anodised ceiling track with sealing-off corresponding to the sound insulation value
Show more
  • Vertical profiles of the panels are made of aluminium, anodised finish
  • No floor guides necessary
  • Stacking area possible inside and outside the partition wall axis
  • High-quality track system
  • Optional with sliding swing door
Contact us

Application Areas

  • Individual space solutions
  • Building-specific partition wall solutions
  • Innovative space concepts
  • Moveable acoustic partition walls
  • Inside

Technical data

GEZE Slifold 80
Frameless No
Indoor use Yes
Outdoor use No
Leaf width (min.) 600 mm
Leaf width (max.) 1220 mm
MDF board thickness 9 - 10 mm
Stacking area layout Manual, Linear
Fully automatic operation No
Manual operation Yes
Semi-automated operation No
Optional floor guide No
Top and bottom sealing brushes Yes
Retractable seal No
