OL 90 N

Hand lever, lockable * Lockable hand lever for OL 90 N / OL 95

Hand lever OL 90 N lockable OL 90 N, OL 95 Accessories
Contact us

Hand lever, lockable

Downloads

Product shot

Installation instructions

Installation instructions (54333)
Download (.PDF | 12 MB)
Installation instructions (54248)
Download (.PDF | 12 MB)

Installation drawing

Installation drawing DE EN (12872)
Download (.PDF | 557 KB)
Block diagram OL 90 N
Download (.DWG | 1 MB)
Installation drawing OL 90 N flexible link arm for post-transom façade
Download (.DWG | 192 KB)

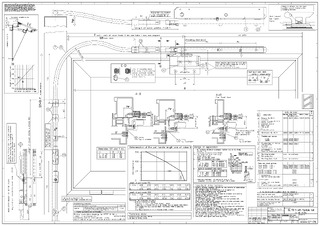

Installation drawing EN (12905)
Download (.PDF | 345 KB)

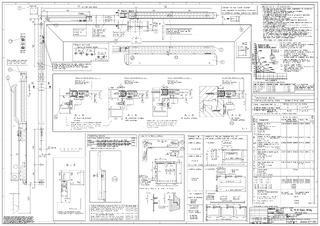

Installation drawing EN (12861)
Download (.PDF | 425 KB)
Installation drawing OL 90 N with hand lever
Download (.DWG | 223 KB)
Installation plan OL 90 N flexible rod on round and segmental arch windows
Download (.DWG | 369 KB)
Installation plan OL 90 N flexible rod on round and segmental arch windows
Download (.DXF | 2 MB)

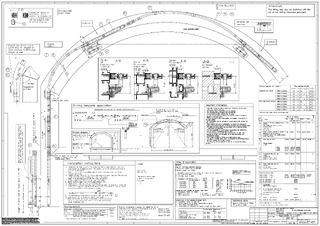

Installation drawing EN (16065)
Download (.PDF | 461 KB)
Installation plan OL 90 N for pitched windows
Download (.DXF | 1 MB)
Installation plan OL 90 N for pitched windows
Download (.DWG | 399 KB)

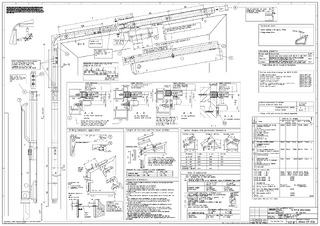

Installation drawing EN (16058)
Download (.PDF | 423 KB)
Installation plan OL 90 N for triangular windows
Download (.DWG | 494 KB)
Installation plan OL 90 N for triangular windows
Download (.DXF | 2 MB)

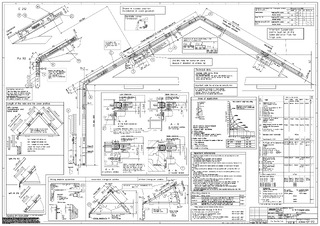

Installation drawing EN (16061)
Download (.PDF | 474 KB)
Installation plan OL 90 N with additional locking
Download (.DWG | 468 KB)
Installation plan OL 90 N with additional locking
Download (.DXF | 2 MB)
Installation plan OL 90 N with coupling
Download (.DWG | 147 KB)
Installation plan OL 90 N with coupling
Download (.DXF | 1 MB)

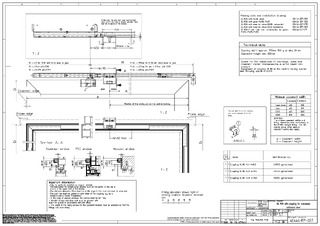

Installation drawing EN (16070)
Download (.PDF | 191 KB)
Installation plan OL 95 with additional locking
Download (.DWG | 219 KB)
Installation plan OL 95 with additional locking
Download (.DXF | 1 MB)

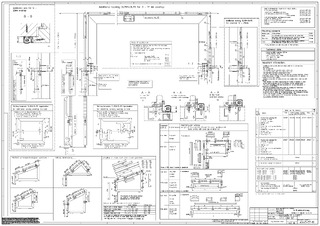

Installation drawing EN (16085)
Download (.PDF | 393 KB)
Installation plan OL 95 with E 212 and additional locking
Download (.DWG | 475 KB)
Installation plan OL 95 with E 212 and additional locking
Download (.DXF | 2 MB)

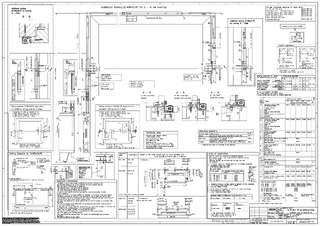

Installation drawing EN (16088)
Download (.PDF | 482 KB)

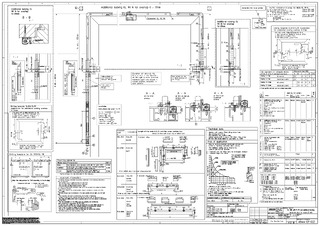

Installation drawing EN (16521)
Download (.PDF | 460 KB)

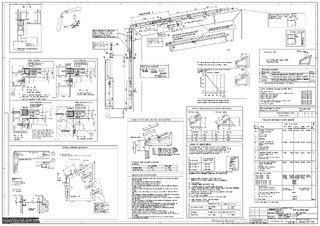

Installation drawing EN (16082)
Download (.PDF | 459 KB)
OL 95 for pitched windows
Download (.DWG | 447 KB)
OL 95 for pitched windows
Download (.DXF | 1 MB)

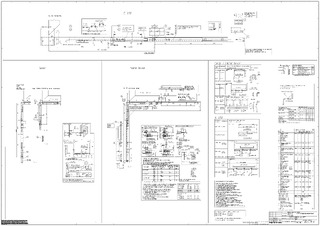

Installation drawing EN (16582)
Download (.PDF | 592 KB)
OL 95 surface-mounted fanlight opener
Download (.DWG | 581 KB)
OL 95 with hand lever
Download (.DXF | 2 MB)

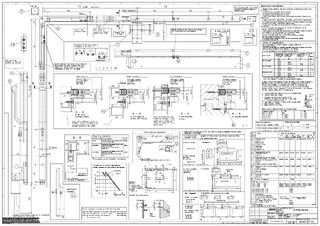

Installation drawing EN (16073)
Download (.PDF | 475 KB)
OL 95 with hand lever
Download (.DWG | 481 KB)

Product data sheet

Hand lever, lockable Product data sheet EN
Download (.PDF | 447 KB)
