Powerturn F/R-IS/TS * Semi-automatic system with swing door drive on active leaf and door closer on passive leaf for fire and smoke protection doors with integrated smoke switch

Powerturn F/R-IS/TS
  • Smart swing function for easy manual door opening
  • Closing force of EN4-7 with variable adjustment
  • Integrated smoke switch control unit, whose signal closes the door automatically in the event of a fire
  • Opening and closing speed can be individually adjusted
  • Mechanical latching action when operated without current, and electrical automatic unit latching action in regular operation, which accelerates the door shortly before it is closed
  • Mechanical and electrical closing sequence control holds the active leaf in the waiting position until the passive leaf is closed
Show more
  • Low-energy function opens and closes the door with reduced speed, fulfilling the highest safety demands
  • Obstacle detection detects an object through contact and stops the opening or closing process
  • Automatic reversing detects an obstacle and returns to the opening position
  • Push & Go function triggers the automatic drive following light manual pressure on the door leaf

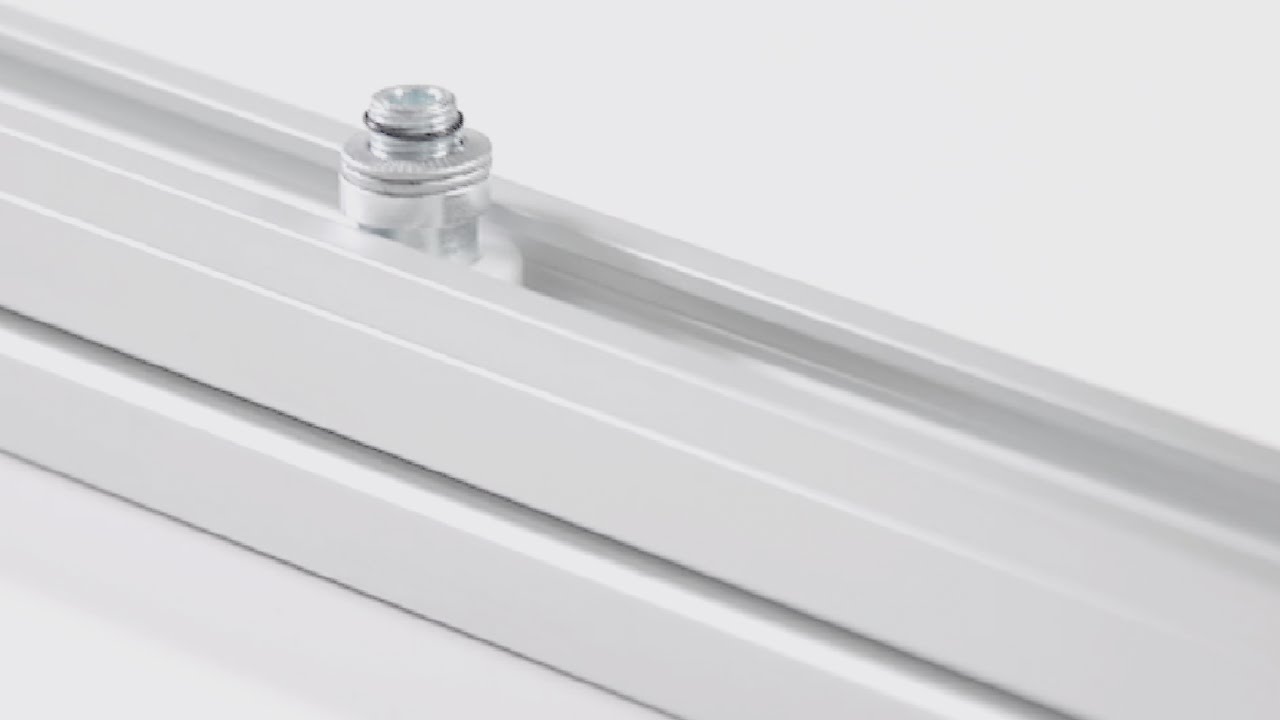

  • Drive can be used with roller guide rail or link arm
  • Servo function for motorized support when manually opening the door
  • Optional radio reception board for wireless activation by radio transmitter
  • Freely configurable inputs and outputs for different functions
  • Can be networked, and integrated into the building automation via open standard (BACnet)
Contact us

Application Areas

  • Fire and smoke protection doors
  • Hold-open systems with integrated hold-open function – country-specific specifications must be observed

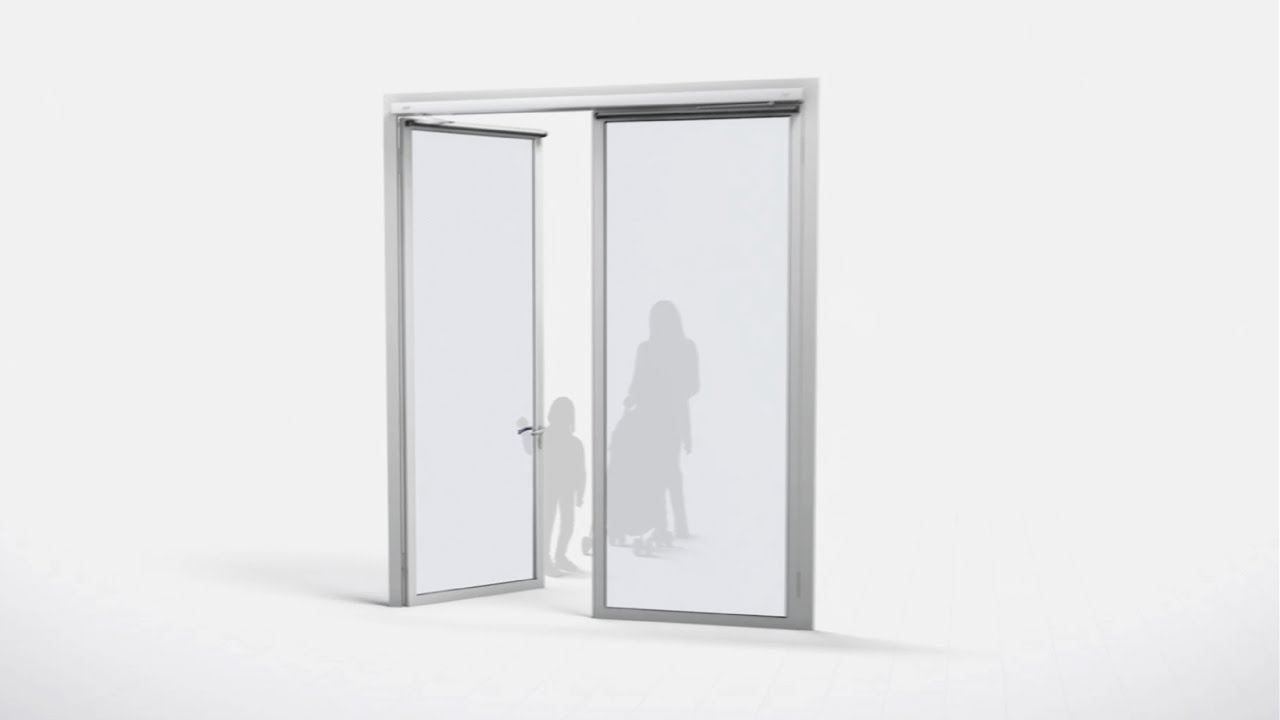

  • Right and left double leaf single-action doors
  • Single-action doors up to 3200 mm hinge clearance with link arm installation
  • Single-action doors up to 2800 mm hinge clearance with roller guide rail installation
  • Minimum hinge clearance 1500 mm, minimum passive leaf width 470 mm (depending on installation type)
  • Interior and exterior doors with high access frequency
  • Transom installation hinge and opposite hinge side
  • Symmetrical and asymmetrical division of door possible

Technical data

Powerturn F/R-IS/TS
Leaf weight (max.) 1-leaf 600 kg
Minimum passive leaf width 470 mm
passive leaf width max. 1400 mm
active leaf width min. 856 mm
active leaf width max. 1600 mm
Reveal depth (max.) 160 mm
Opening angle (max.) 136 °
DIN left Yes
DIN right Yes
Transom installation opposite hinge side with link arm Yes
Transom installation hinge side with roller guide rail Yes
Mechanical latching action Yes
Electrical latching action Yes

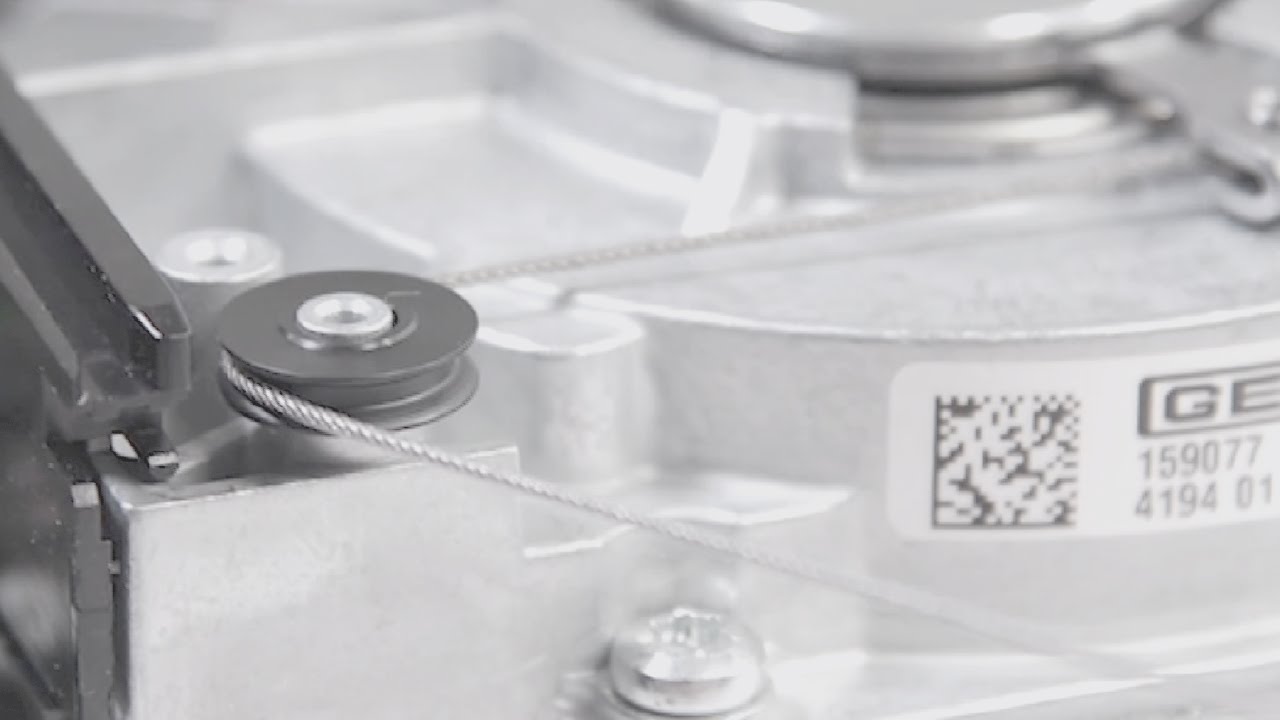

Mechanical closing sequence control Yes
Disconnection from mains Main switch in the drive
Power supply for external consumers (24 V DC) 1.2 A
Service temperature -15 - 50 °C
Mode of operation Automatic, Off, Permanently open, Shop closing, Night
Automatic function Yes
Low-energy function Yes
function smart swing Yes
Servo function Yes
Obstacle detection Yes
Automatic reversing Yes
Push & Go adjustable
Operation Programme switch DPS, Programme switch integrated in the drive, MPS programme switch
Standard conformity DIN 18650, EN 16005
Suitability for fire protection doors Yes
Smoke switch integrated Yes
