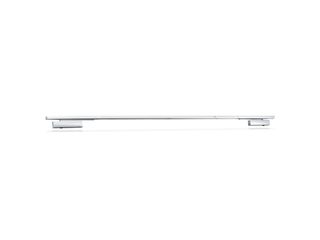

TS 5000 L-R-ISM * Overhead door closer system with guide rail on opposite hinge side, with anti-panic function for double leaf doors up to 2800 mm hinge clearance with integrated closing sequence control, electric hold-open device and smoke switch control unit
- System comprising two door closers TS 5000 L and an R-ISM guide rail
- Closing force of EN2-6 with variable adjustment
- Operating voltage 230 V AC
- Electric hold-open device in the guide rail with hold-open area from 80°
- Electric hold-open device in the guide rail with hold-open area of 80°-130°
- Closing sequence control holds the active leaf in the waiting position until the passive leaf is closed

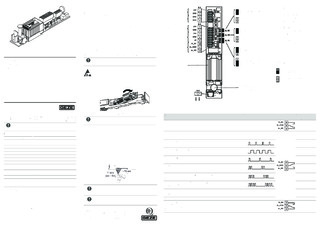

- Integrated smoke switch control unit, whose signal closes the door automatically in the event of a fire
- Smoke switch with contamination indicator and adaption of the alarm threshold
- Additional smoke detectors can be fitted
- Hydraulic latching action which accelerates the door shortly before it is closed
- Closing speed can be individually adjusted
- Integrated back check, slows down doors that are thrown open forcefully
- Visual closing force display for easy control of the setting
- All functions can be adjusted from the front
Application Areas
- Fire and smoke protection doors
- Double leaf single-action doors
- Symmetrical and asymmetrical division of door possible
- Single-action doors up to 2800 mm hinge clearance and 1400 mm leaf width
- Minimum hinge clearance 1560 mm, minimum width of the active leaf 905 mm and of the passive leaf 380 mm
- Door leaf installation opposite hinge side
Installation situations in reference objects and videos

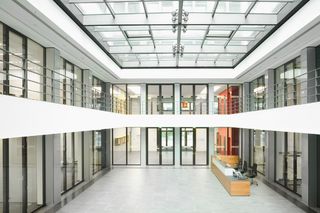

Door closer TS 5000 L-R-ISM, installed at Generali Germany AG in Cologne.
The overhead door closer TS 5000 L-R-ISM can be mounted, on double leaf doors with integrated, invisible closing sequence control, on the door leaf of the opposite hinge side. In the event of a fire, the integrated smoke detector activates and the door closes automatically. © Lothar Wels / GEZE GmbH

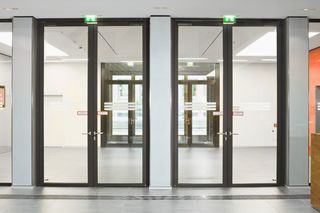

Door closer TS 5000 L-R-ISM, installed at Generali Germany AG in Cologne.
The overhead door closer TS 5000 L-R-ISM can be mounted, on double leaf doors with integrated, invisible closing sequence control, on the door leaf of the opposite hinge side. In the event of a fire, the integrated smoke detector activates and the door closes automatically. © Lothar Wels / GEZE GmbH

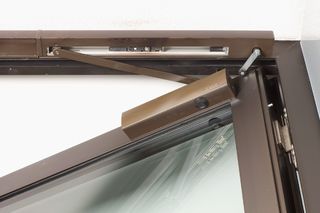

Door closer TS 5000 L-R-ISM, installed at Generali Germany AG in Cologne.
The overhead door closer TS 5000 L-R-ISM can be mounted, on double leaf doors with integrated, invisible closing sequence control, on the door leaf of the opposite hinge side. In the event of a fire, the integrated smoke detector activates and the door closes automatically. © Lothar Wels / GEZE GmbH

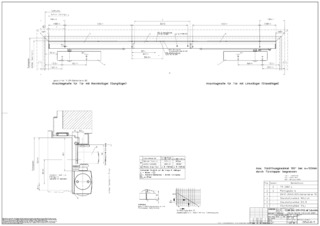

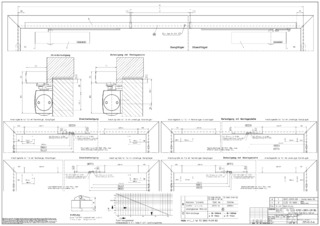

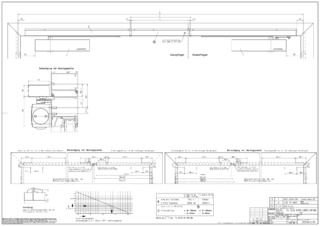

Technical data
| TS 5000 L-R-ISM | |
| Barrier-free in accordance with DIN 18040 up to leaf width (max.) in mm | 1400 mm |
| Leaf width (max.) | 1400 mm |
| Type of installation | Door leaf installation opposite hinge side |
| Opening angle (max.) | 130 ° |
| Input voltage | 230 V AC |
| Frequency of supply voltage | 50 Hz |
| Minimum hinge clearance | 1560 mm |
| Minimum passive leaf width | 380 mm |
| Suitability for fire protection doors | Yes |
| Closing force adjustable | Yes, stepless |
| Adjustable closing speed | Yes |
| Latching action adjustable | Yes, via valve |
| Back check integrated | Yes, hydraulically adjustable |
| Position of closing force adjustment | Front |
| Visual closing force display | Yes |
| Hold-open function | Electrical |
| Hold-open device on the active leaf / passive leaf | Yes / Yes |
| Hold-open range | 80 ° |
| Smoke switch integrated | Yes |
| Closing sequence control integrated | Yes |
